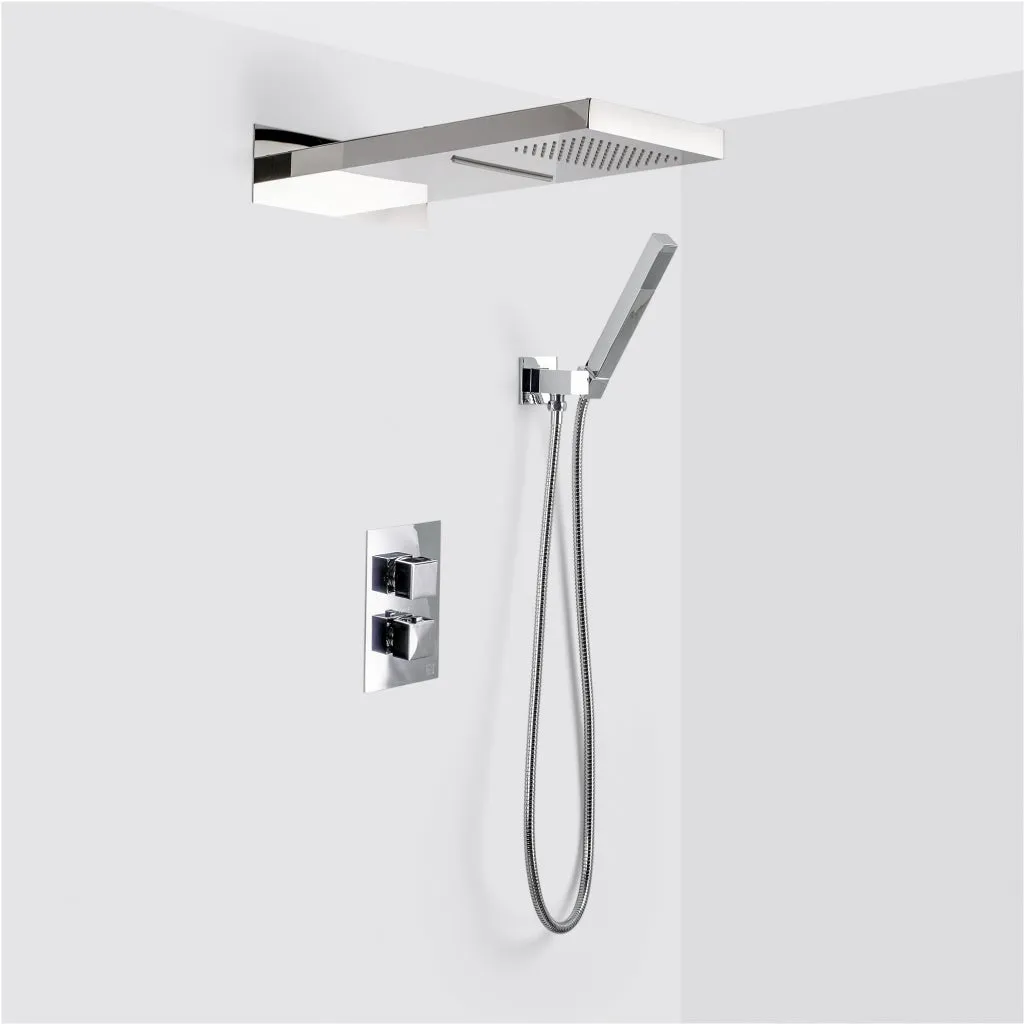

Pressure balanced 3-Way shower system of our family Devon. With this shower set you have everything you need to install your shower. It is a three-way system with outlet for double function shower head with rain and waterfall and outlet for hand shower. Composed of three-way thermostatic mixer, hand shower, hose, hand shower shower connector with holder and shower head with rain and waterfall function.
Features:
- Mixer features:

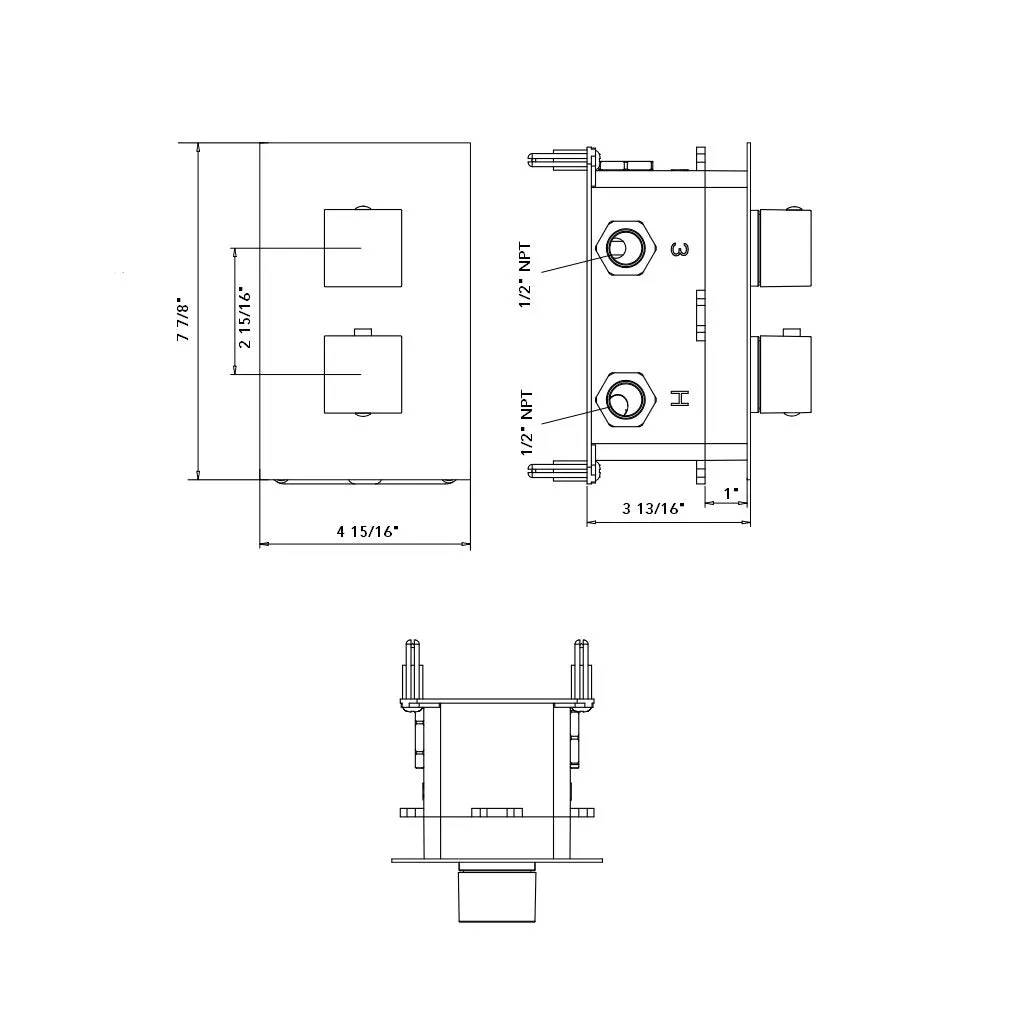

- 3-Way Thermostatic rough-in valve
- Shut-off valves and integrated anti-return valves
- Sedal ceramic thermostatic cartridge.
- Thermostatic cartridge prevent scalding, cold water supply stops when cold water pressure fail
- Flow rate 3.4 GPM
- Working pressure:
- Min: 20 PSI (1.5 bar)
- Max: 125 PSI (8 bar)
- Recommended: 45 PSI (3 bar)
- Hot water inlet max. temperature: 180 °F (80 °C)
- Water inlet threads: 1/2 NPT female
- Full brass

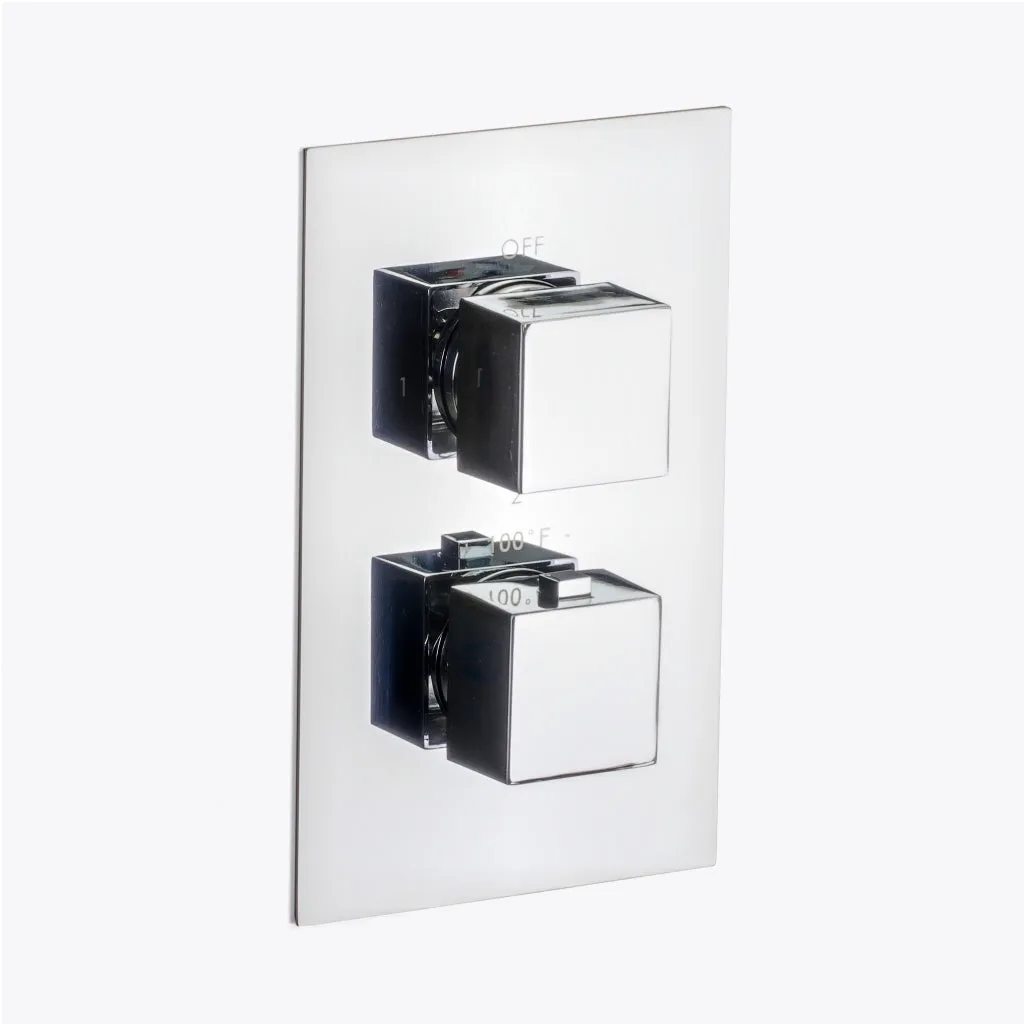

- Trim features:
- Square design
- Full brass

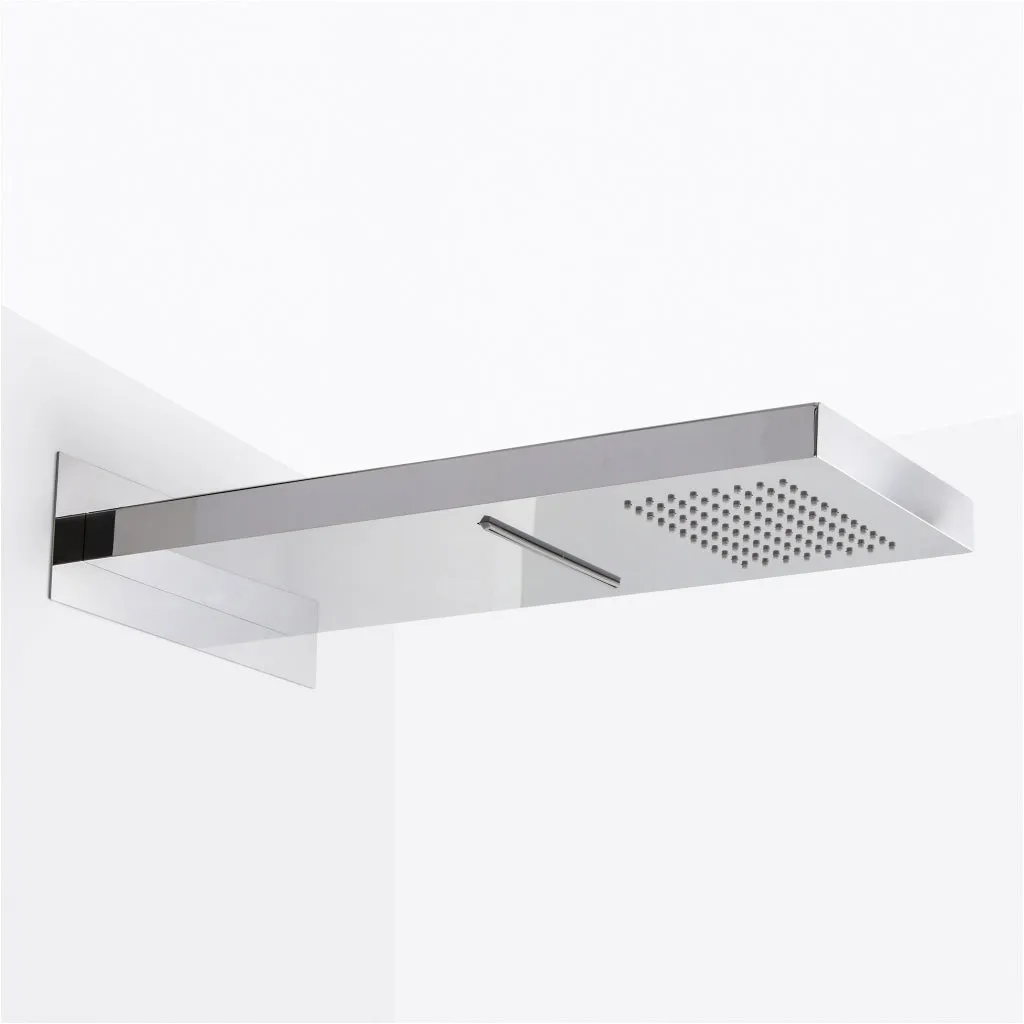

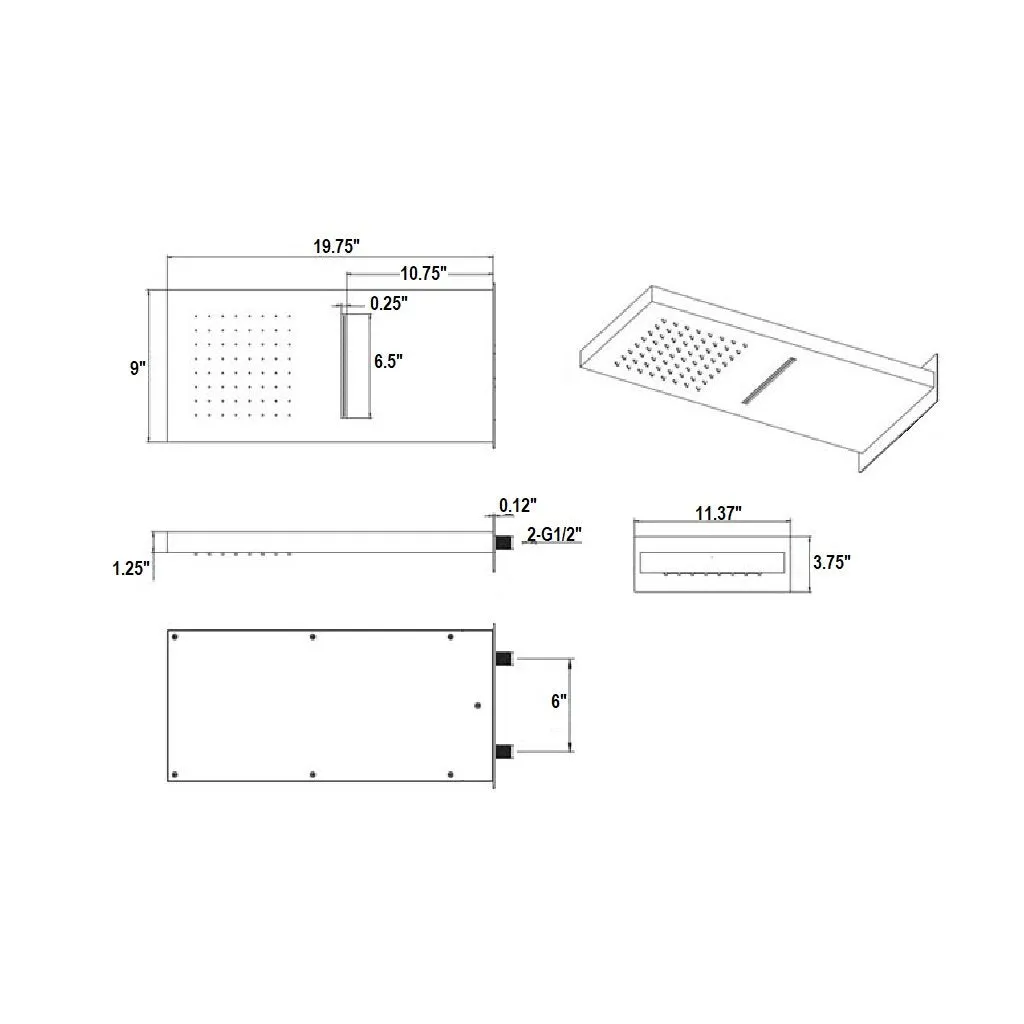

- Shower head features:

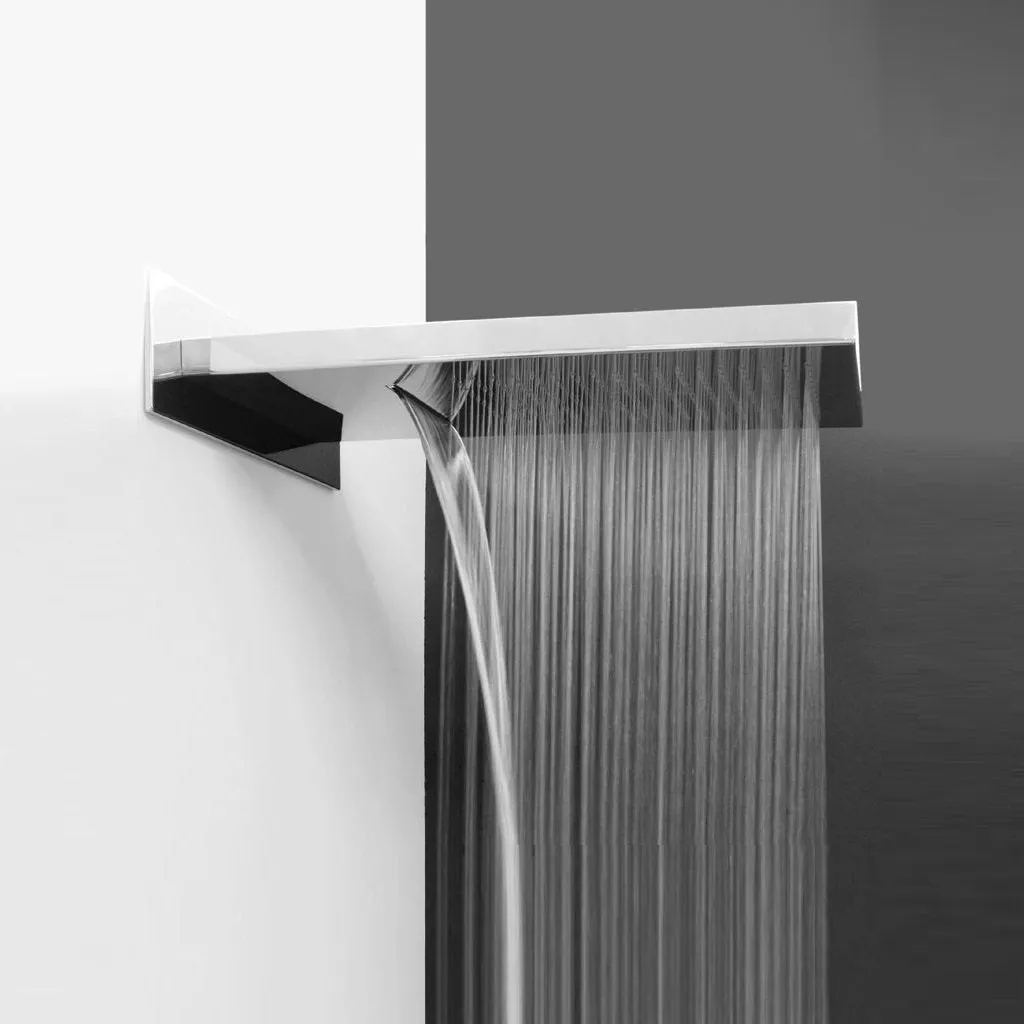

- Waterfall and rain shower.
- 1/2" NPT male inlet for each function
- 2 functions, needs premixed water
- 4 Gpm @ 80 PSI / 15 L/min @ 522 kPa
- Silicone nozzles easy to clean in rain function
- Made in stainless steel.

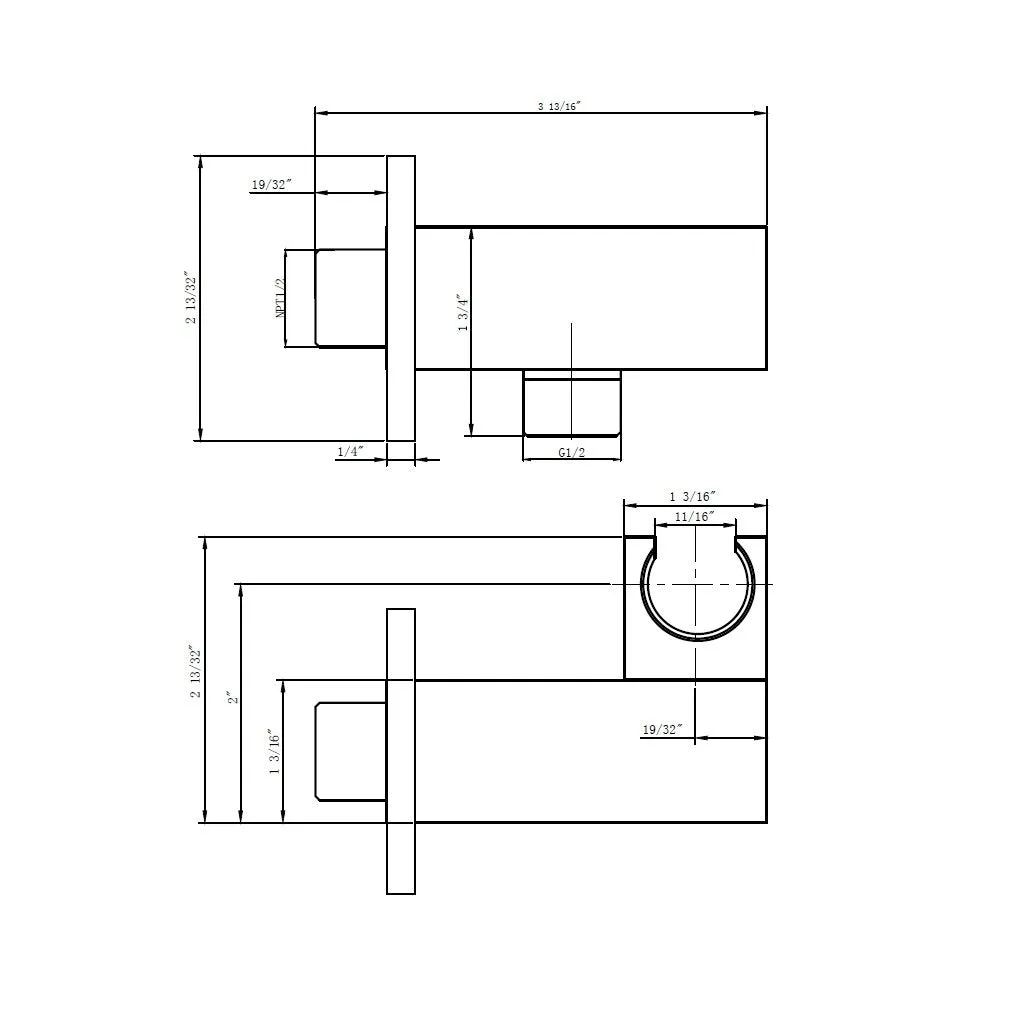

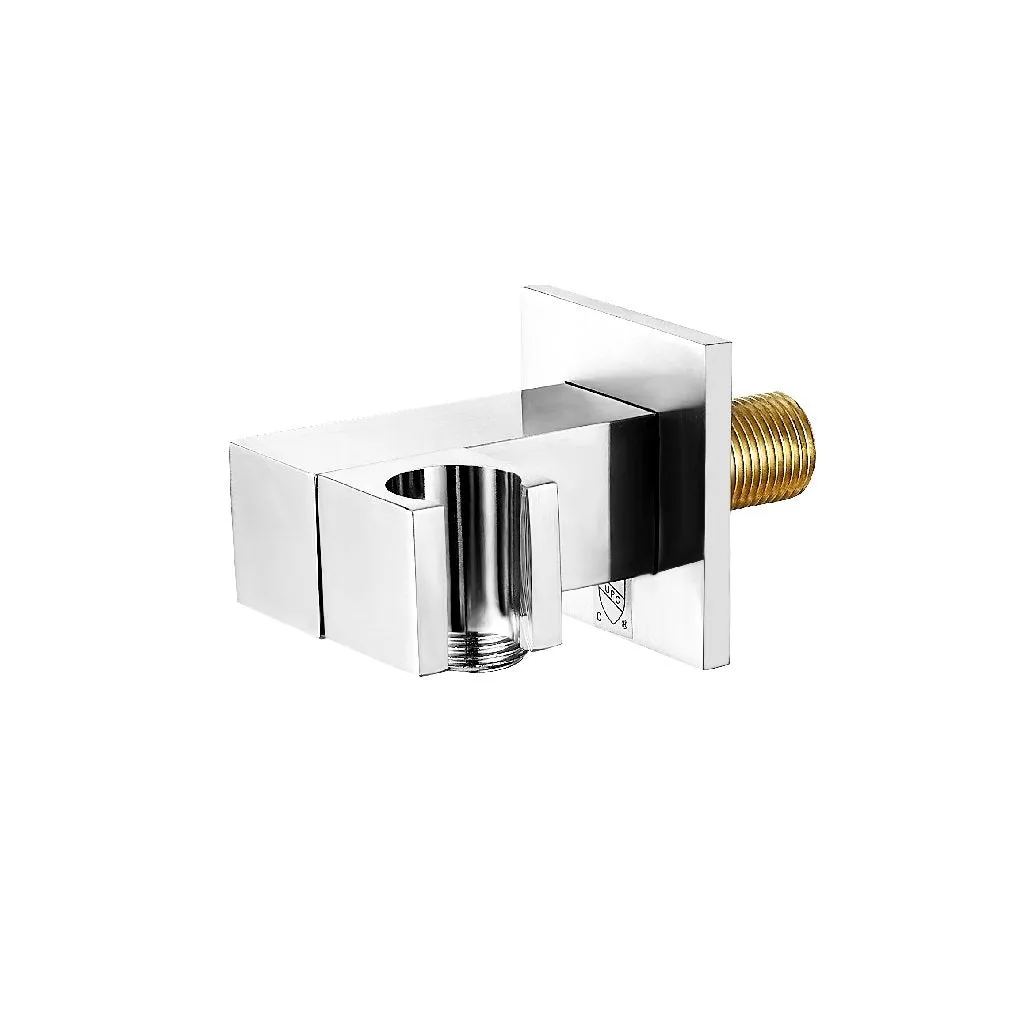

- Connector features:
- Rectangular design with holder for hand shower.
- NPT 1/2 in. inlet. G 1/2 in. outlet

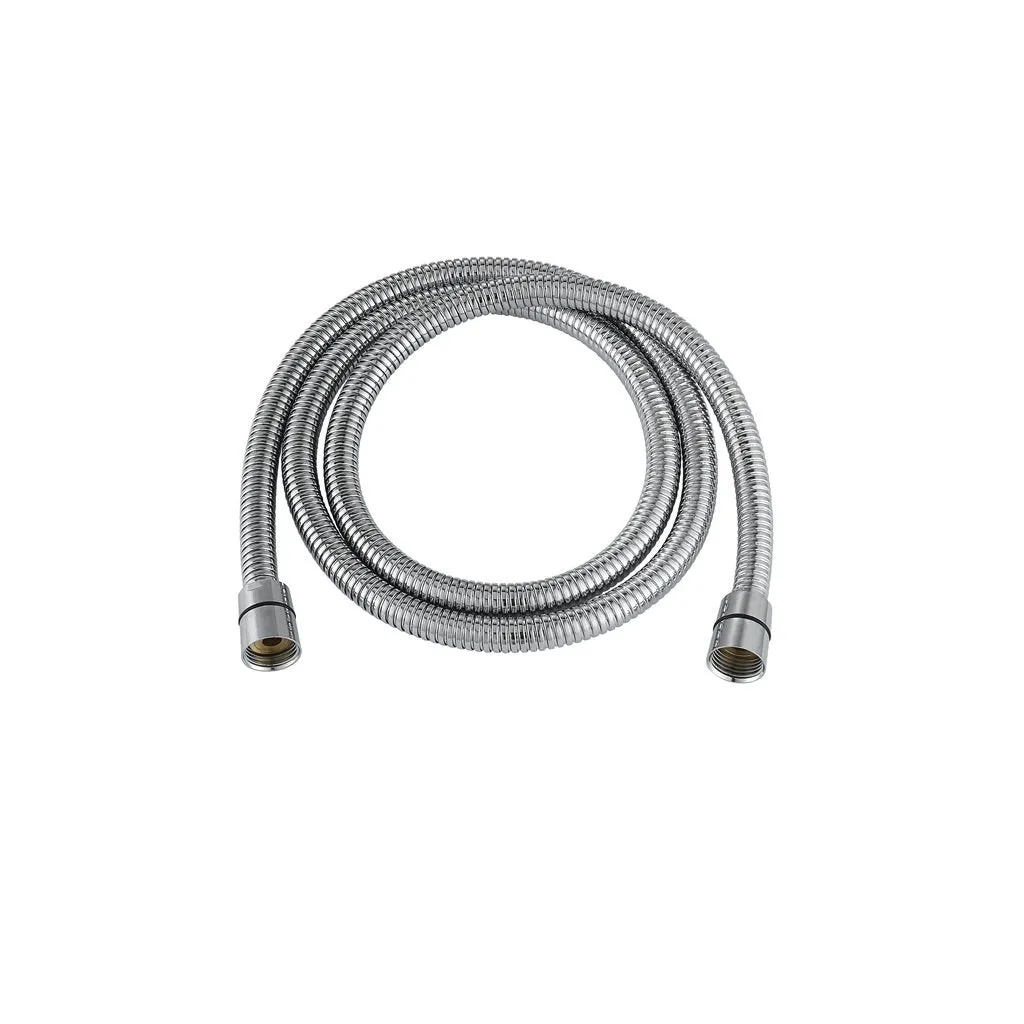

- Hose features:
- Length 60 in.
- Stainless Steel construction.
- NPT 1/2 in. inlet

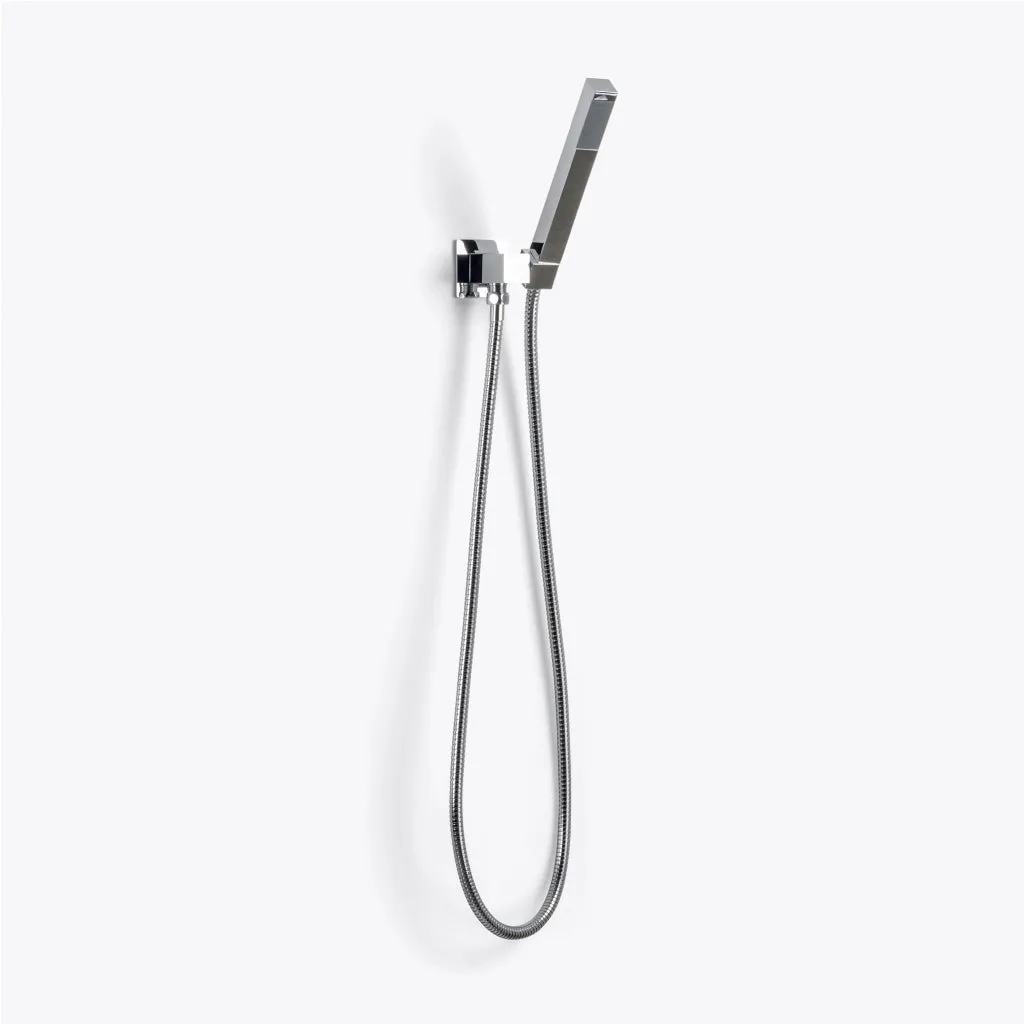

- Hand shower features:
- Square design.
- Only rain function.
- 1.8 Gpm
- G1/2 in. Inlet.
- Silicone square nozzles easy to clean.
- ABS construction.
- Material: Brass
- Finish/Color: Polished Chrome
- Dimensions:
- Weight: 18.8 lb.
- Rustproof: Yes
- Warranty (Years): 1
- Material Warranty: Yes
- Finish Warranty: Yes
- UPC Certified: Yes
- Easy Installation: Yes
Documents:
- Spec Sheets (PDF)
